Available as: Fun Runner Xtreme XL
*Trailer & Tongue Weights May Change Without Notice Due To Design Change & Choice of Options.
| Model: | 162 | 182 | 202 | 222 | 242 |
| Enclosure Length: | 16' | 18' | 20' | 22' | 24' |
| Tongue Length: | 4'6" | 4'6" | 4'6" | 4'6" | 4'6" |
| Overall Length: | 20'6" | 22'6" | 24'6" | 26'6" | 28'6" |
| Tongue Weight: (Dry)* |
710 lbs. | 735 lbs. | 760 lbs. | 775 lbs. | 790 lbs. |
| Trailer Weight: (Dry)* |
3,400 lbs. | 3,600 lbs. | 3,800 lbs. | 4,000 lbs. | 4,300 lbs. |
| Gross Weight: (Trailer + Load)* |
7,000 lbs. | 7,000 lbs. | 7,000 lbs. | 7000 lbs. | 7,000 lbs. |
| Cargo Area Width: (between Walls) |
96" | 96" | 96" | 96" | 96" |
| Cargo Area Length: (to first Cabinet) |
10'10" | 12'10" | 14'10" | 16'10" | 18'10" |
| Fresh Water Capacity: | 40 Gal. | 40 Gal. | 40 Gal. | 40 Gal. | 40 Gal. |
| Gray Water Capacity: | 22 Gal. | 22 Gal. | 22 Gal. | 22 Gal. | 22 Gal. |
| Black Water Capacity: | 22 Gal. | 22 Gal. | 22 Gal. | 22 Gal. | 22 Gal. |
| Propane (L.P.G.) Tank Size: | 5 Gal. | 5 Gal. | 5 Gal. | 5 Gal. | 5 Gal. |
*Trailer & Tongue Weights May Change Without Notice Due To Design Change & Choice of Options.

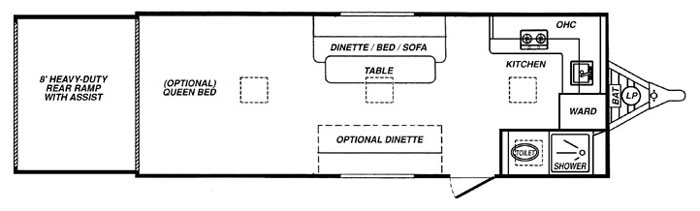

Floor Plans
Exterior Colors
Polar White
Black
Victory Red
Dove Gray
Forest Green
Indigo Blue
Champagne Beige
Interior Fabric Colors
Interior Cabinet Finishes
Standard Features
- Single Stainless Steel Sink
- Formica Counter Top
- Smoke Tinted Windows
- Day & Night Shades
- Stereo System Pre-Wiring
- TV Antenna / Cable Pre-Wiring
- Air Conditioner Pre-Wiring
- 4-Function Monitor Panel
- On-Demand Water Pump
- 6 Gallon DSI Water Heater
- Wet Bath
- Stone Guard on Sides & Front
- Furnace
- 2-Burner Cook Top
- 2.0 C.F. Refrigerator (2-Way 12V/110V)
- Full Linoleum Flooring
- Decorative Wall Paneling
- Sliding Kitchen Window
- Solid Front Wall Window
- Mirrored Wardrobe Closet
- Single Convertible Dinette / Bed
- 12V DC Interior Lighting
- Single 5 Gal. Propane Tank
- Cable Assisted Ramp Door
- 2 Wheel Electric Brakes
- Lockable Service Doors
- Powder Coated Wheels
- Tie Down Anchors
- Deep Cycle Battery
- R-7 Insulated Walls & Ceiling
- Emergency Escape Window
- 45 Amp Converter w/ 12V Battery Charger
Options
