TRAILERS
Gallery
Specs - PDF

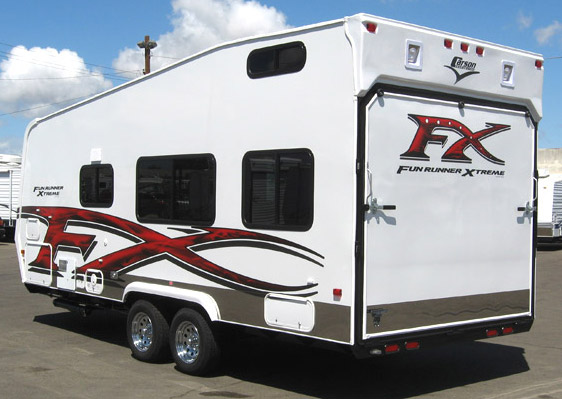

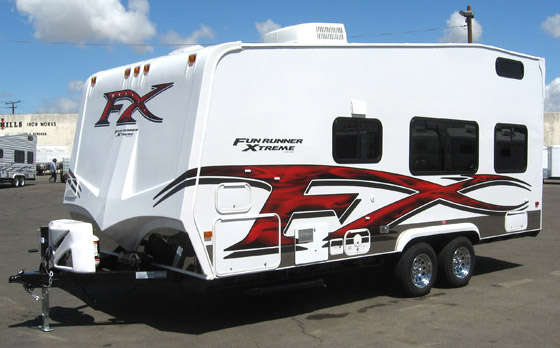

Available as: Fun Runner Xtreme XC
*Trailer & Tongue Weights May Change Without Notice Due To Design Change & Choice of Options.
| Model: | 202 | 222 | 242 | 262 | 283 |
| Enclosure Length: | 20' | 22' | 24' | 26' | 28' |
| Tongue Length: | 4'6" | 4'6" | 4'6" | 4'6" | 4'6" |
| Overall Length: | 24'6" | 26'6" | 28'6" | 30'6" | 32'6" |
| Tongue Weight: (Dry)* |
790 lbs. | 815 lbs. | 840 lbs. | 865 lbs. | 890 lbs. |
| Trailer Weight: (Dry)* |
4,840 lbs. | 5,080 lbs. | 5,460 lbs. | 5,710 lbs. | 6,010 lbs. |
| Gross Weight: (Trailer + Load)* |
7,000 lbs. | 7,000 lbs. | 7,000 lbs. | 10,000 lbs. | 15,000 lbs. |
| Ramp Door Opening: (with Loft) |
94Wx65H | 94Wx65H | 94Wx65H | 94Wx65H | 94Wx65H |
| Ramp Door Opening: (without Loft) |
94Wx78H | 94Wx78H | 94Wx78H | 94Wx78H | 94Wx78H |
| Cargo Area Width: (between Dinettes) |
77" | 77" | 77" | 77" | 77" |
| Cargo Area Width: (between Walls) |
96" | 96" | 96" | 96" | 96" |
| Cargo Area Length: (to first Cabinet) |
13' | 15' | 17' | 19' | 21' |
| Fresh Water Capacity: | 50 Gal. | 50 Gal. | 50 Gal. | 50 Gal. | 50 Gal. |
| Gray Water Capacity: | 27 Gal. | 27 Gal. | 27 Gal. | 27 Gal. | 27 Gal. |
| Black Water Capacity: | 27 Gal. | 27 Gal. | 27 Gal. | 27 Gal. | 27 Gal. |
| Propane Tank Size: | Two 5 Gal. | Two 5 Gal. | Two 5 Gal. | Two 5 Gal. | Two 5 Gal. |
*Trailer & Tongue Weights May Change Without Notice Due To Design Change & Choice of Options.

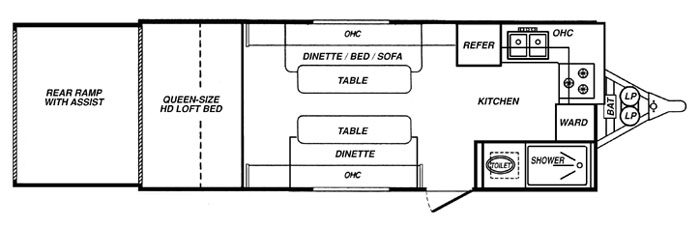

Floor Plans
Exterior Colors
Polar White
Black
Victory Red
Dove Gray
Forest Green
Indigo Blue
Champagne Beige
Interior Fabric Colors
Interior Cabinet Finishes
Standard Features
- Double Stainless Steel Sink
- Formica Counter Top
- Smoke Tinted Windows
- Day & Night Shades
- Stereo System Pre-Wiring
- Generator Capability Built-In
- TV Antenna / Cable Pre-Wiring
- Air Conditioner
- 4-Function Monitor Panel
- On-Demand Water Pump
- 6 Gallon DSI Water Heater
- Wet Bath
- Furnace
- Stone Guard on Sides & Front
- 3-Burner Cook Top
- 6.0 Cubic Foot Refrigerator
- Full Linoleum Flooring
- Decorative Wall Paneling
- Sliding Kitchen Window
- Solid Front Wall Window
- Overhead Cabinets on Both Sides
- Queen Size Loft Bed
- Mirrored Wardrobe Closet
- Side Awning
- Exterior Shower
- Two Convertible Dinette / Bed
- 12V DC Interior Lighting
- Dual 5 Gal. Propane Tanks
- Raised Roof
- Cable Assisted Ramp Door
- 4 Wheel Electric Brakes
- Lockable Service Doors
- 45 Amp Converter w/ 12V Battery Charger
- Bathtub & Stand-Up Shower
- Powder Coated Wheels
- Tie Down Anchors
- Deep Cycle Battery
- R-7 Insulated Walls & Ceiling
- Emergency Escape Hatch
Options
