TRAILERS
Gallery
Specs - PDF
Available as: Fun Runner FT & Titan FT
*Trailer & Tongue Weights May Change Without Notice Due To Design Change & Choice of Options.
| Model: | 322 | 363 | 403 | 423 |
| Enclosure Length: | 24' | 28' | 32' | 34' |
| Upper Deck Length: | 8' | 8' | 8' | 8' |
| Overall Length: | 32' | 36' | 40' | 42' |
| Overall Width: | 102" | 102" | 102" | 102" |
| Hitch Weight: (Dry)* |
1,000 lbs. | 1,150 lbs. | 1,275 lbs. | 1,400 lbs. |
| Trailer Weight (Dry)* |
9,000 lbs. | 9,500 lbs. | 10,000 lbs. | 10,500 lbs. |
| Gross Weight: (Trailer + Load)* |
10,400 lbs. | 15,600 lbs. | 15,600 lbs. | 15,600 lbs. |
| Ramp Door Opening: (with Loft) |
94Wx78H | 94Wx78H | 94Wx78H | 94Wx78H |
| Ramp Door Opening: (without Loft) |
94Wx65H | 94Wx65H | 94Wx65H | 94Wx65H |
| Cargo Area Width: (between dinettes) |
77" | 77" | 77" | 77" |
| Cargo Area Width: (between walls) |
96" | 96" | 96" | 96" |
| Cargo Area Length: (to first cabinet) |
13.5' | 17.5' | 21.5' | 23.5' |
| Fresh Water Capacity: | 60 Gal. | 60 Gal. | 60 Gal. | 60 Gal. |
| Gray Water Capacity: | 40 Gal. | 40 Gal. | 40 Gal. | 40 Gal. |
| Black Water Capacity: | 40 Gal. | 40 Gal. | 40 Gal. | 40 Gal. |
| Propane Tank Size: | Two 5 Gal. | Two 5 Gal. | Two 5 Gal. | Two 5 Gal. |
*Trailer & Tongue Weights May Change Without Notice Due To Design Change & Choice of Options.

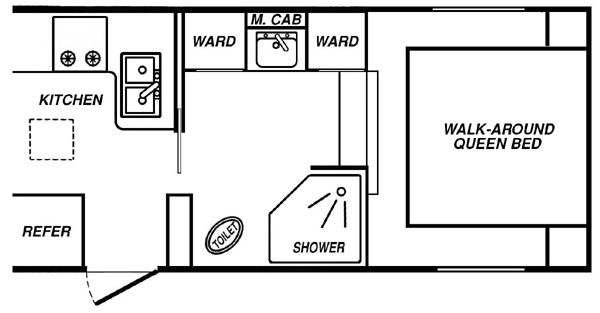

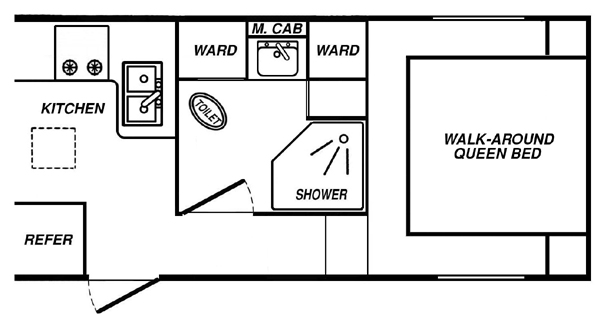

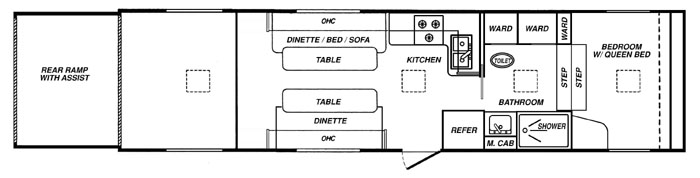

Floor Plans
Exterior Colors
Polar White
Black
Victory Red
Dove Gray
Forest Green
Indigo Blue
Champagne Beige
Interior Fabric Colors
Interior Cabinet Finishes
Standard Features
- Double Stainless Steel Sink
- Formica Counter Top
- Smoke Tinted Windows
- Day & Night Shades
- Stereo System Pre-Wiring
- Generator Capability Built-In
- TV Antenna / Cable Pre-Wiring
- Air Conditioner
- 4-Function Monitor Panel
- On-Demand Water Pump
- 6 Gallon DSI Water Heater
- Full Bath
- Furnace
- Stone Guard on Sides & Front
- 3-Burner Cook Top w/ Oven
- 6.3 Cubic Foot Refrigerator
- Bathroom / Stand-Up Shower
- Full Linoleum Flooring
- Decorative Wall Paneling
- Sliding Kitchen Window
- Overhead Cabinets on Both Sides
- Queen Size Pull Down Bed
- Mirrored Wardrobe Closet
- Side Awning
- Exterior Shower
- Two Convertible Dinettes / Beds
- Dual 5 Gal. Propane Tanks
- Cable Assisted Ramp Door
- Chrome Wheels
- 4 Wheel Electric Brakes
- Lockable Service Doors
- 60 Amp Converter w/ 12V Battery Charger
- Tie Down Anchors
- Two Deep Cycle Batteries
- R-7 Insulated Walls & Ceiling
- Emergency Escape Hatch
- Electric Tongue Jack
- 12V DC Interior Lighting
Options
